TSP supplies yarn sensors for texturing machinery. Select the output type and mounting dimensions to match the machine and its control system.

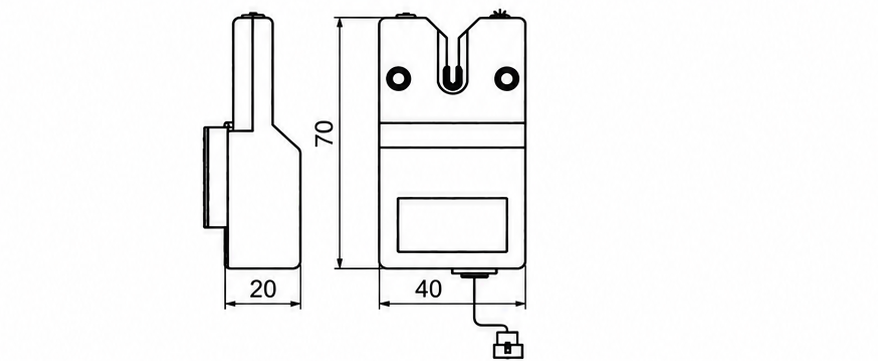

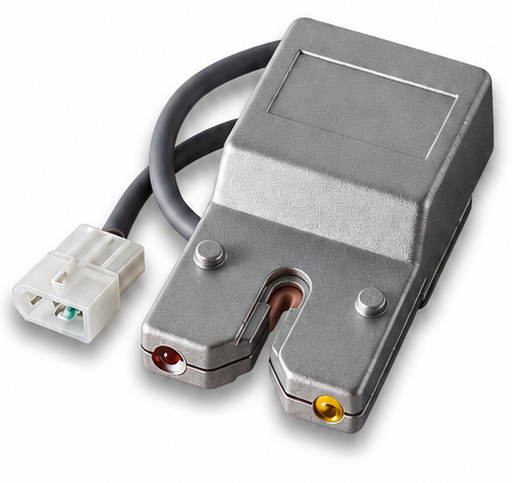

TSP-028 NPN | Murata Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-028 NPN |
| Output Type | NPN |
| Length | 40mm |
| Width | 20mm |
| Height | 70mm |

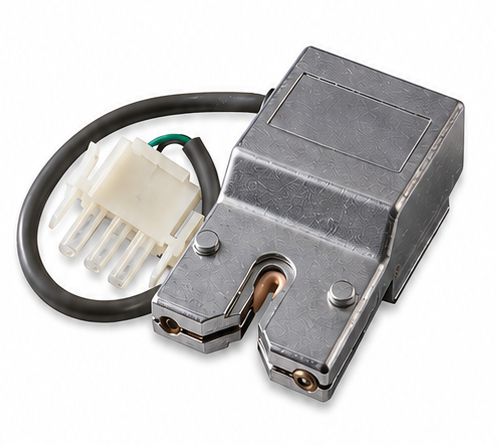

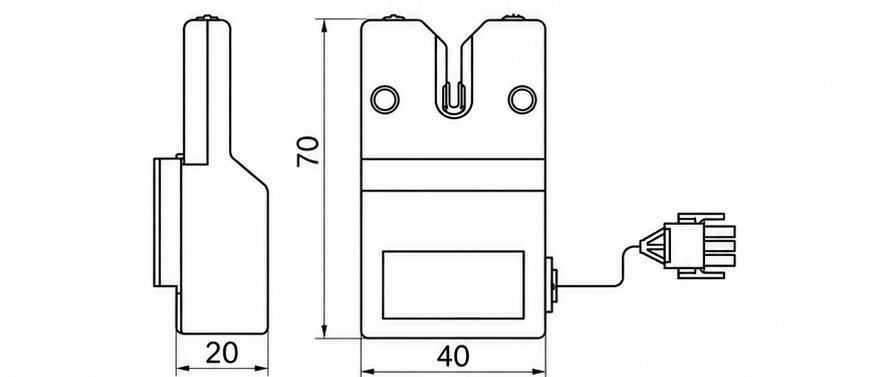

TSP-029 PNP | Barmag Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-029 PNP |
| Output Type | PNP |
| Length | 40mm |
| Width | 20mm |
| Height | 70mm |

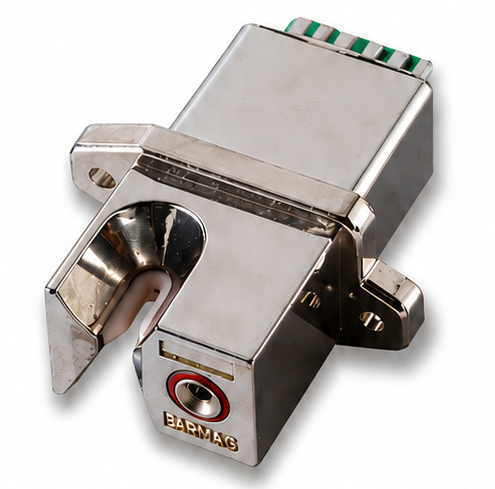

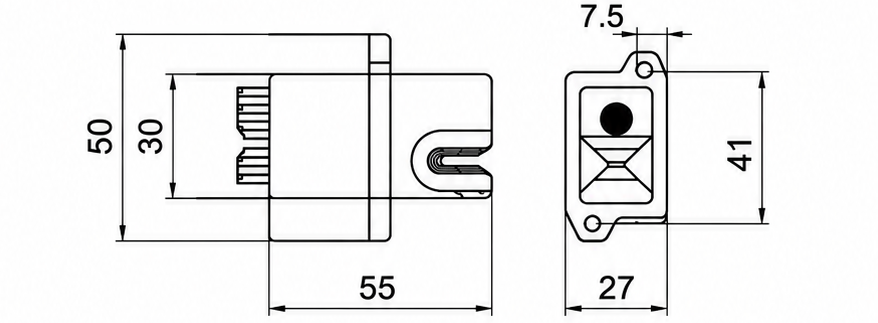

TSP-030 PNP | Barmag Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-030 PNP |
| Output Type | PNP |
| Length | 55mm |
| Width | 27mm |
| Height | 41mm |

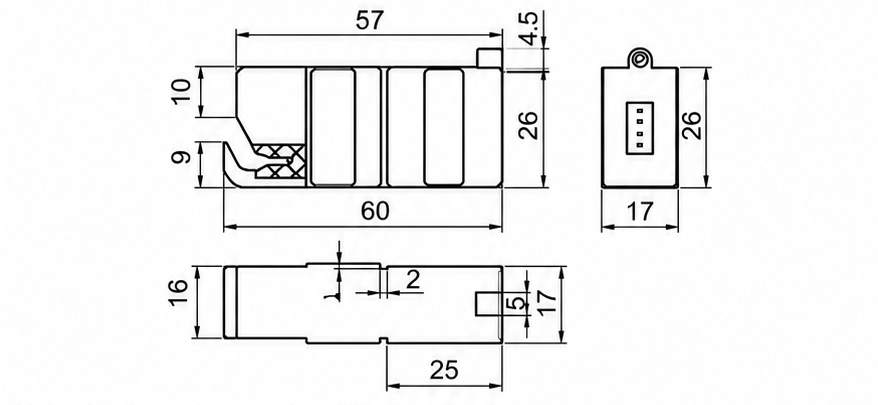

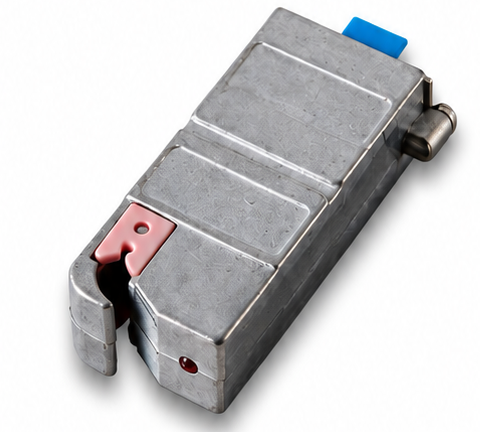

TSP-069 NPN | Rieter Scragg Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-069 NPN |
| Output Type | NPN |
| Length | 60mm |
| Width | 17mm |
| Height | 26mm |

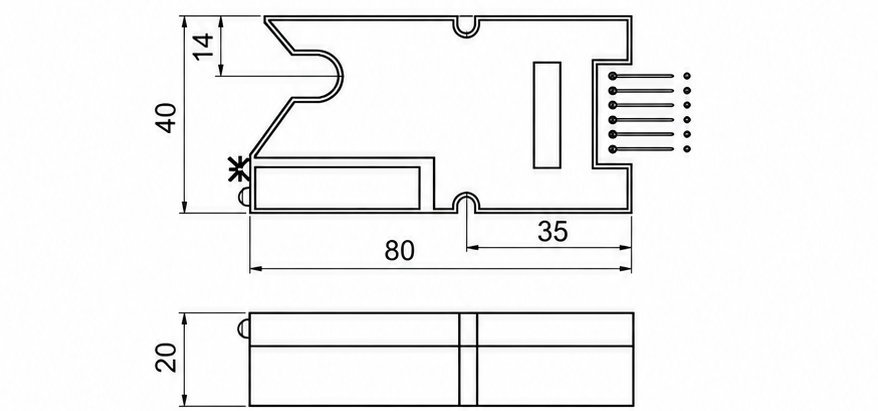

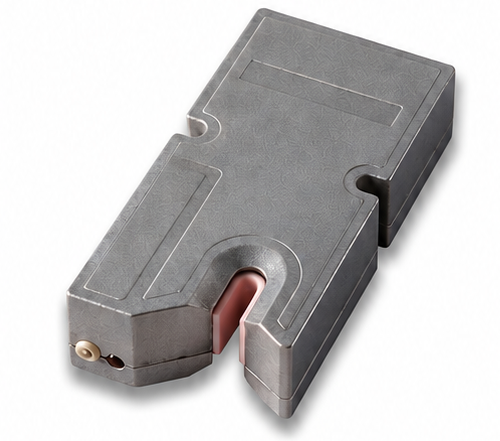

TSP-070 NPN | Rieter Scragg Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-070 NPN |
| Output Type | NPN |
| Length | 80mm |
| Width | 20mm |
| Height | 40mm |

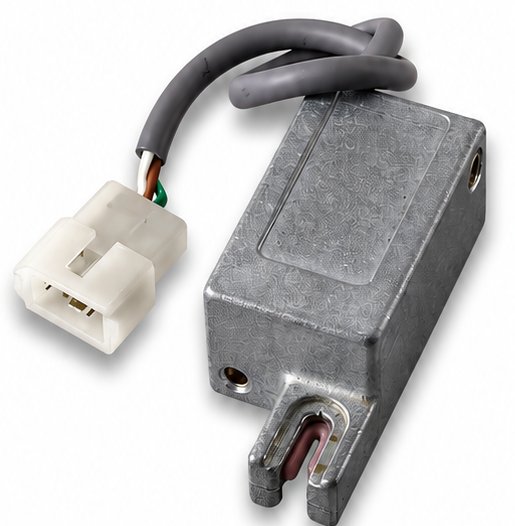

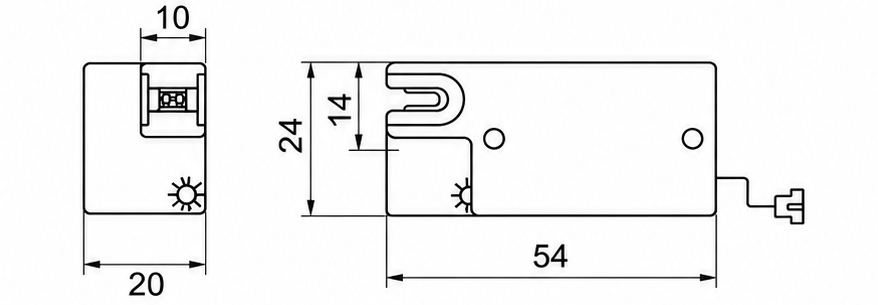

TSP-071-N NPN | RPR Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-071-N NPN |
| Output Type | NPN |
| Length | 54mm |
| Width | 20mm |
| Height | 24mm |

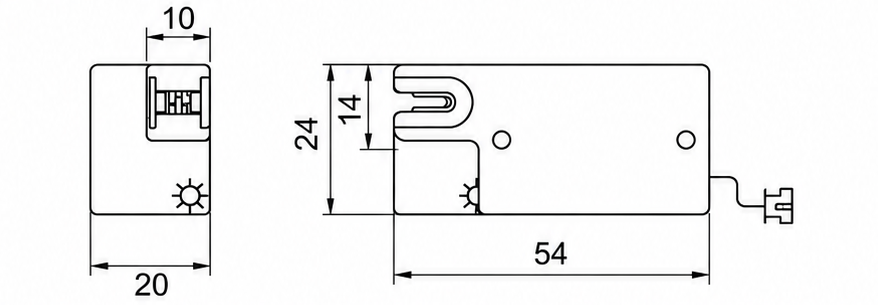

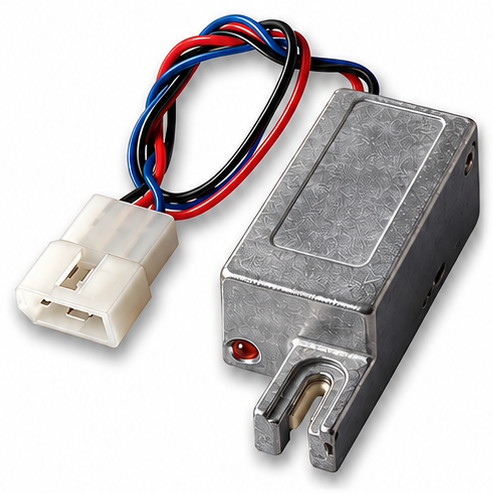

TSP-071 PNP | RPR Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-071 PNP |
| Output Type | PNP |
| Length | 54mm |
| Width | 20mm |
| Height | 24mm |

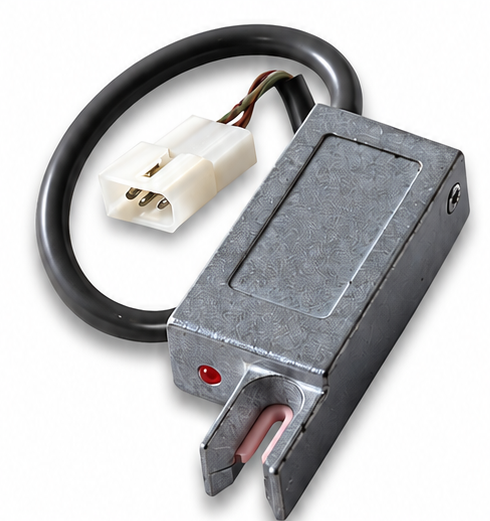

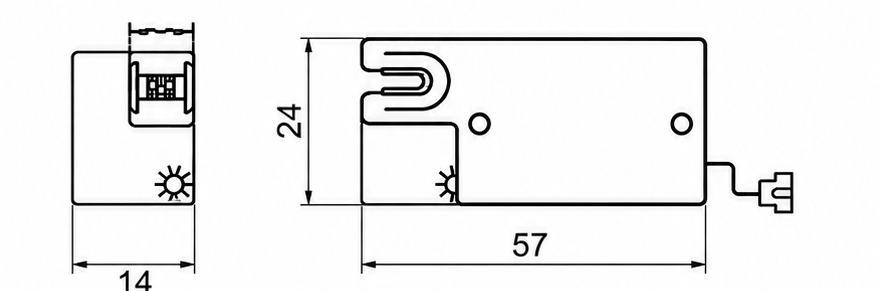

TSP-071C PNP | RPR Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-071C PNP |
| Output Type | PNP |
| Length | 57mm |
| Width | 14mm |
| Height | 24mm |

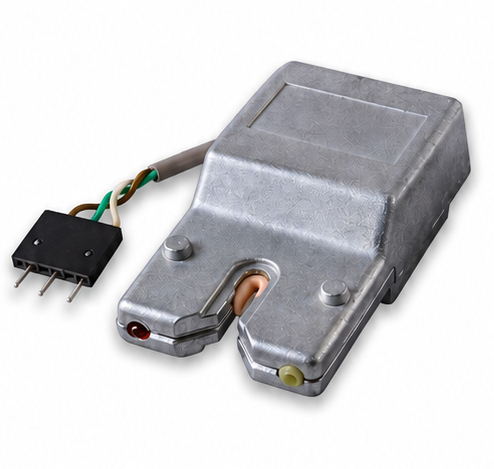

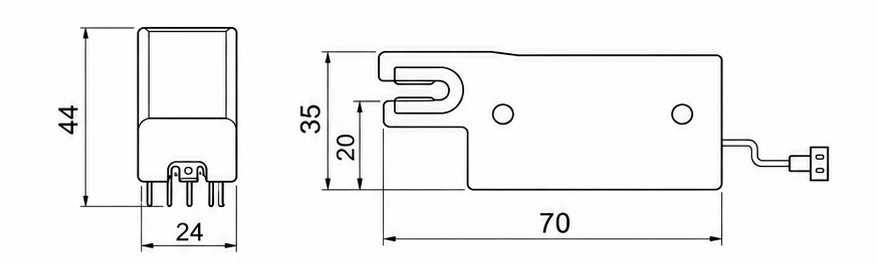

TSP-077 PNP | Rieter ICBT Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-077 PNP |
| Output Type | PNP |
| Length | 70mm |
| Width | 24mm |
| Height | 35mm |

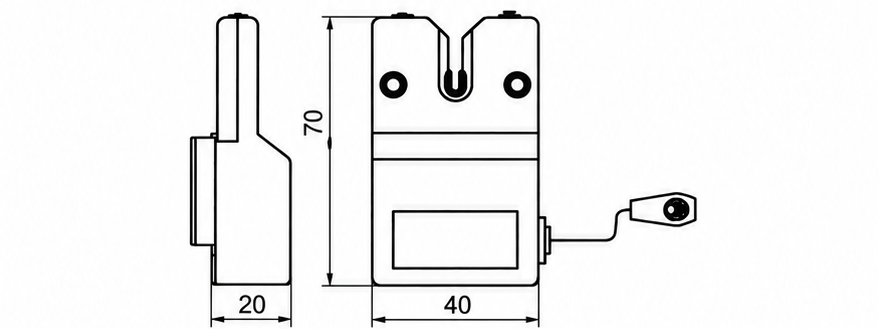

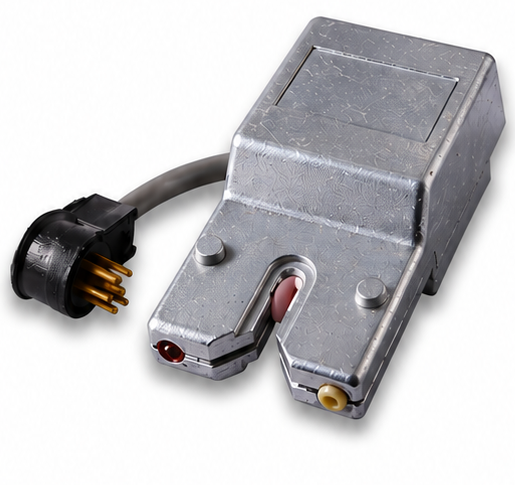

TSP-078 NPN | Rieter ICBT Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-078 NPN |
| Output Type | NPN |
| Length | 40mm |
| Width | 20mm |
| Height | 70mm |

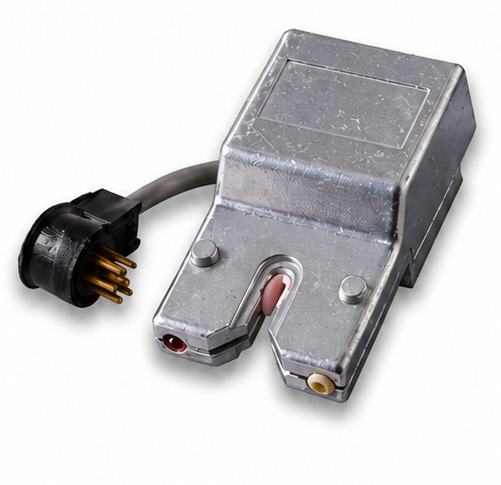

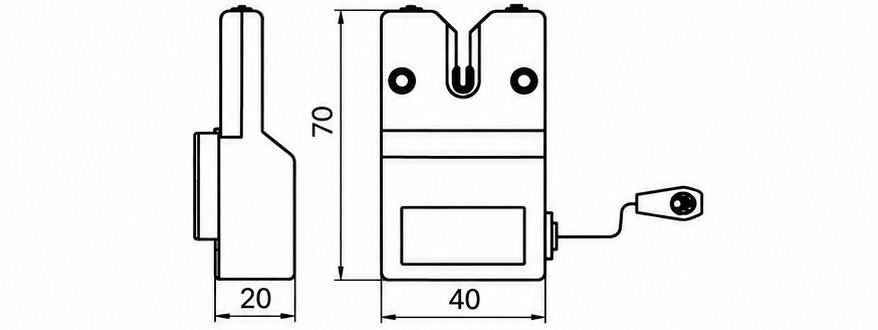

TSP-078 PNP | Rieter ICBT Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-078 PNP |
| Output Type | PNP |
| Length | 40mm |
| Width | 20mm |
| Height | 70mm |

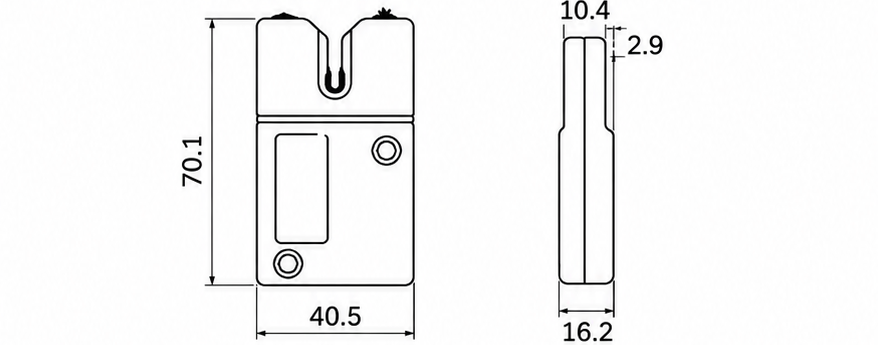

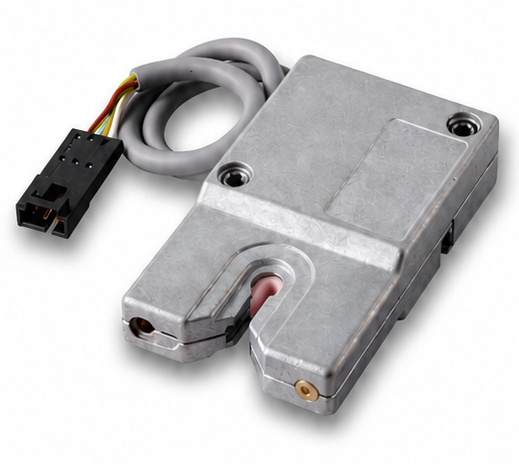

TSP-227 PNP | Rieter ICBT Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-227 PNP |
| Output Type | PNP |
| Length | 40.5mm |
| Width | 16.2mm |
| Height | 70.1mm |

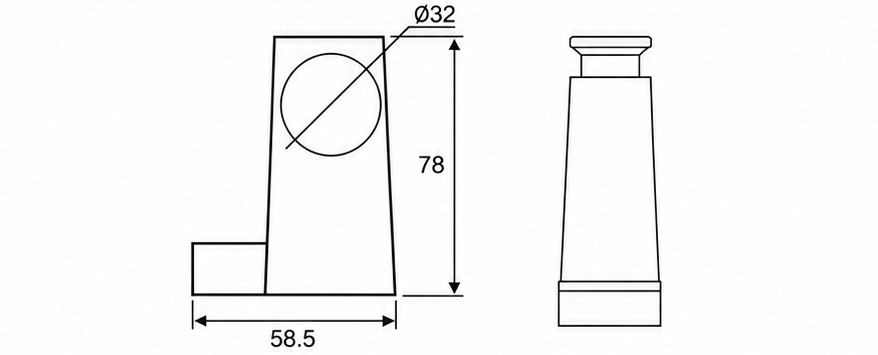

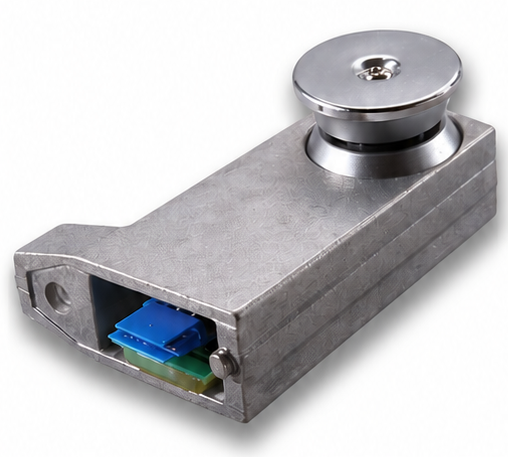

TSP-262 PNP | Rieter ICBT Yarn Sensor
| Description | Specification |
|---|---|
| Part Reference | TSP-262 PNP |
| Output Type | PNP |
| Width | 58.5mm |
| Height | 78mm |
| Diameter | 32mm |
Confirm the machine model, mounting arrangement and required part reference when enquiring.
Yarn Monitoring
Detect yarn conditions to support the machine’s monitoring and control functions.
Machine Compatibility
Confirm sensor type, mounting and electrical interface before replacement.
Technical Support
Help identifying suitable sensors from references, photographs and machine details.
