Barmag
Barmag Friction Unit Spindle

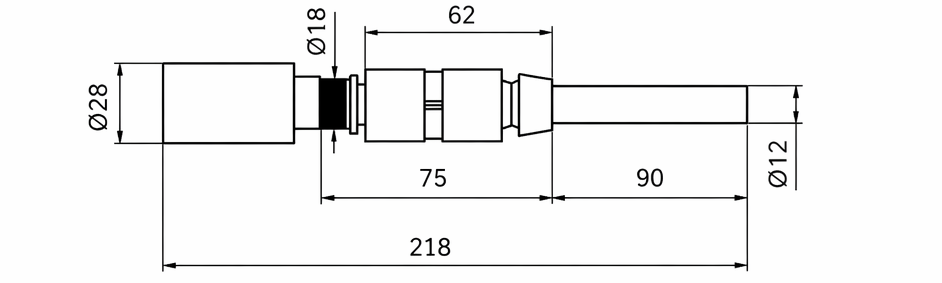

TSP-36
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø28mm |
| Shoulder Diameter | Ø18mm |
| Shaft Diameter (Right End) | Ø12mm |
| Length (Left Section) | 62mm |
| Length (Middle Section) | 75mm |
| Length (Right Section) | 90mm |
| Overall Length | 218mm |
Barmag Friction Unit Spindle

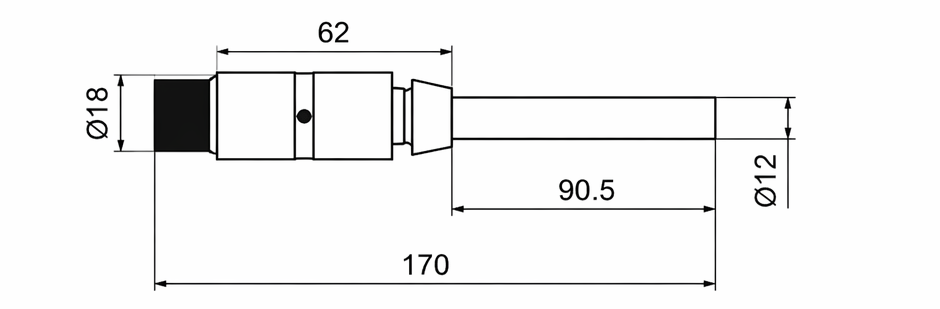

TSP-37
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø18mm |
| Shaft Diameter (Right End) | Ø12mm |
| Length (Left Section) | 62mm |
| Length (Right Section) | 90.5mm |
| Overall Length | 170mm |

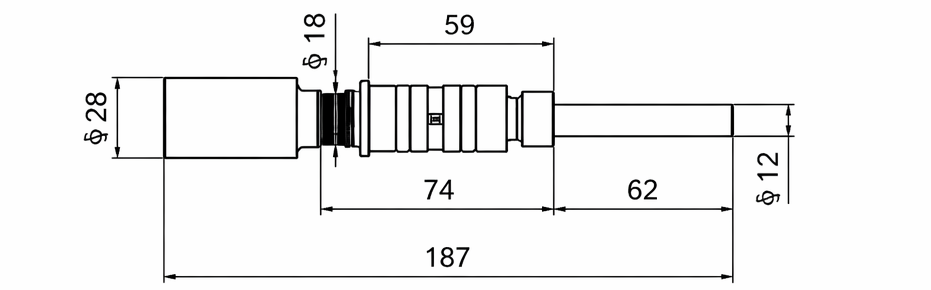

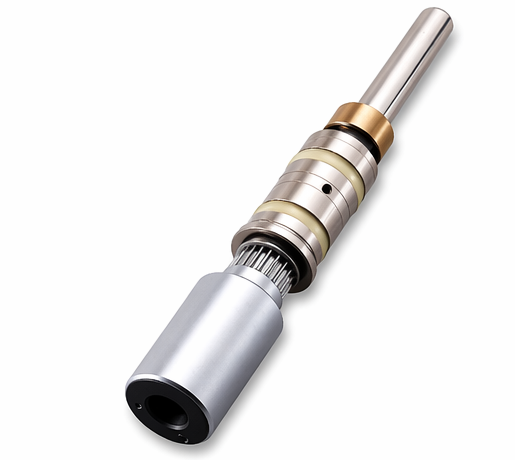

Barmag Friction Unit Spindle
TSP-3
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø28mm |
| Shoulder Diameter | Ø18mm |
| Shaft Diameter (Right End) | Ø12mm |
| Length (Left Section) | 59mm |
| Length (Middle Section) | 74mm |
| Length (Right Section) | 62mm |
| Overall Length | 187mm |

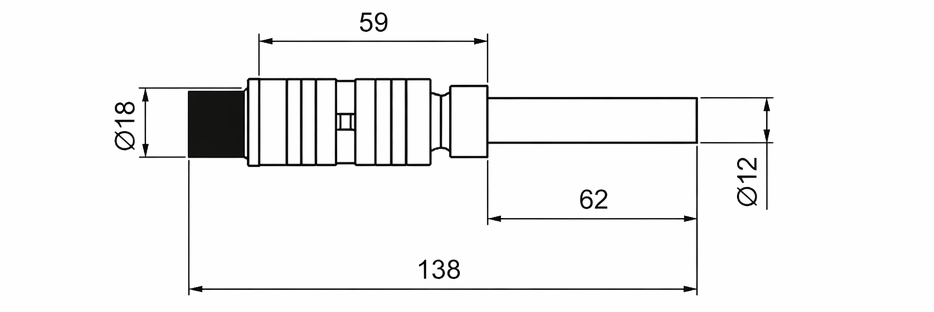

Barmag Friction Unit Spindle

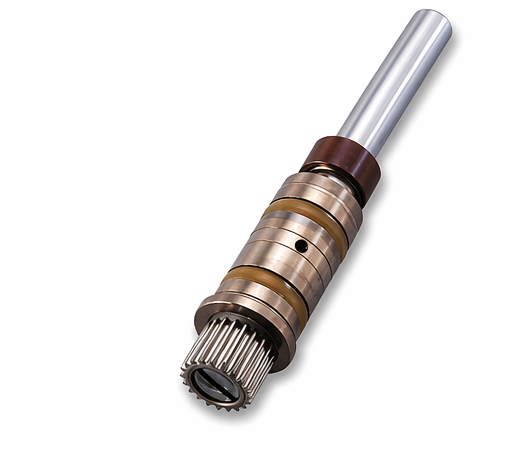

TSP-4
| Description | Dimensions |
|---|---|
| Shoulder Diameter (Left End) | Ø18mm |
| Shaft Diameter (Right End) | Ø12mm |
| Length (Left Section) | 59mm |
| Length (Right Section) | 62mm |
| Overall Length | 138mm |

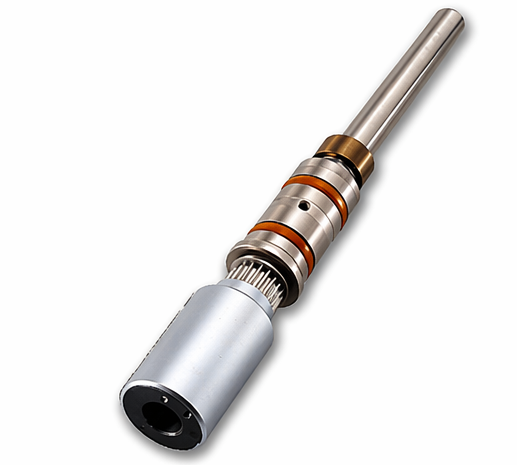

Barmag Friction Unit Spindle

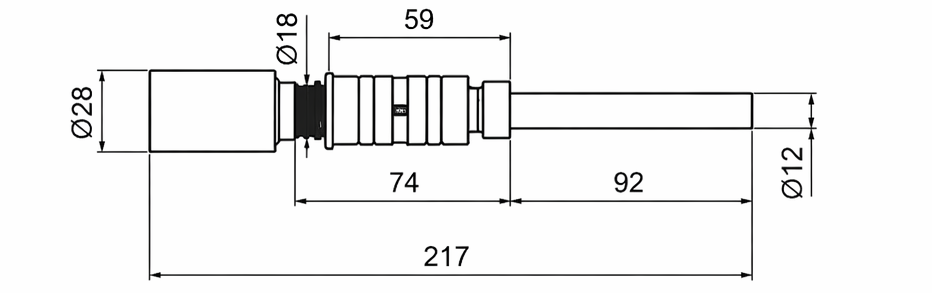

TSP-3B
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø28mm |
| Shoulder Diameter | Ø18mm |
| Shaft Diameter (Right End) | Ø12mm |
| Length (Left Section) | 59mm |
| Length (Middle Section) | 74mm |
| Length (Right Section) | 92mm |
| Overall Length | 217mm |

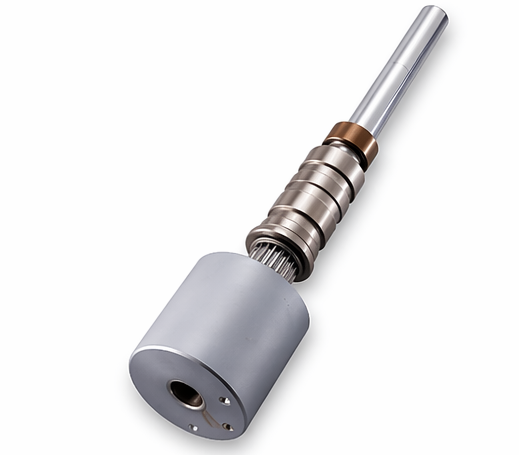

Barmag Friction Unit Spindle

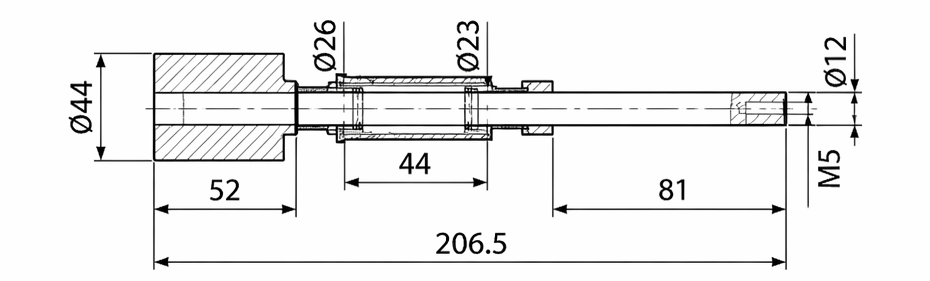

TSP-20644
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø44mm |
| Outer Diameter (Middle Section, Left) | Ø26mm |
| Outer Diameter (Middle Section, Right) | Ø23mm |
| Shaft Diameter (Right End) | Ø12mm |
| Thread (Right End) | M5 |
| Length (Left Section) | 52mm |
| Length (Middle Section) | 44mm |
| Length (Right Section) | 81mm |
| Overall Length | 206.5mm |

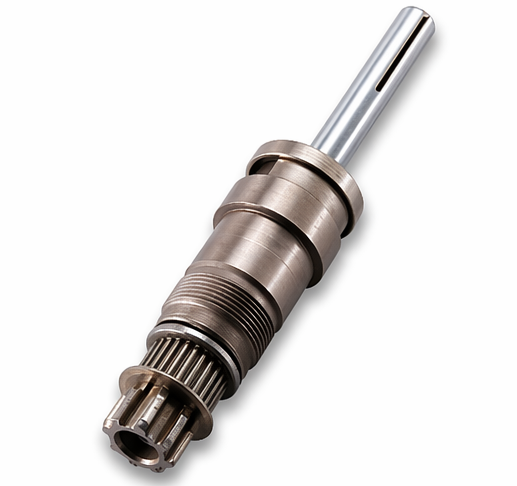

Barmag Friction Unit Spindle

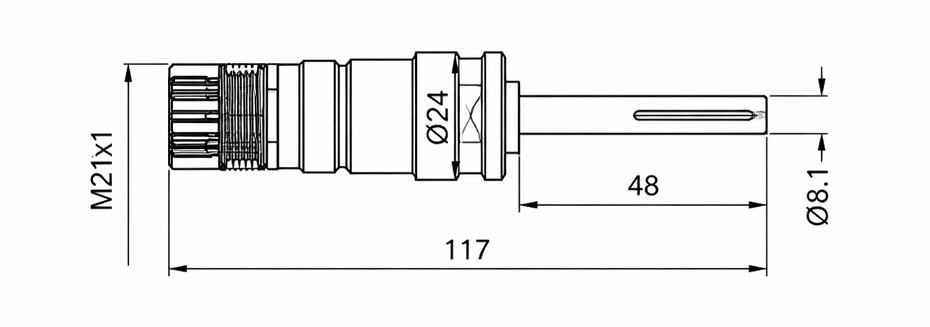

TSP-8
| Description | Dimensions |
|---|---|
| Thread (Left End) | M21 × 1 |
| Outer Diameter (Middle Section) | Ø24mm |
| Shaft Diameter (Right End) | Ø8.1mm |
| Length (Right Section) | 48mm |
| Overall Length | 117mm |

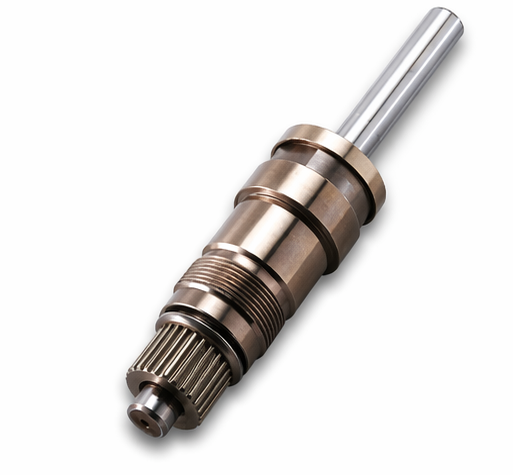

Barmag Friction Unit Spindle

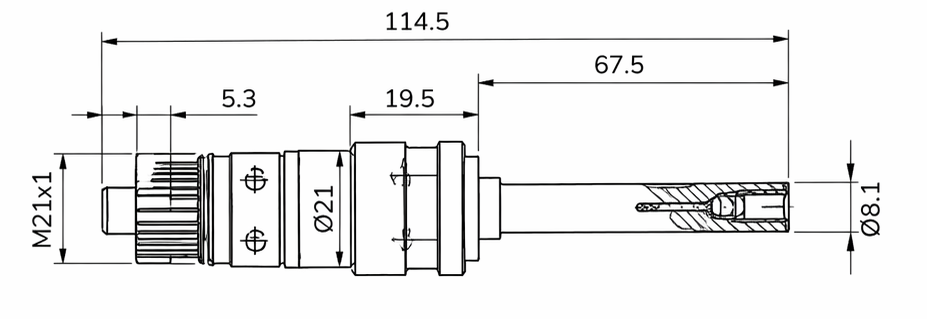

TSP-9
| Description | Dimensions |
|---|---|
| Thread (Left End) | M21 × 1 |
| Length (Threaded Section) | 5.3mm |
| Outer Diameter (Middle Section) | Ø21mm |
| Length (Middle Section) | 19.5mm |
| Length (Right Section) | 67.5mm |
| Overall Length | 114.5mm |

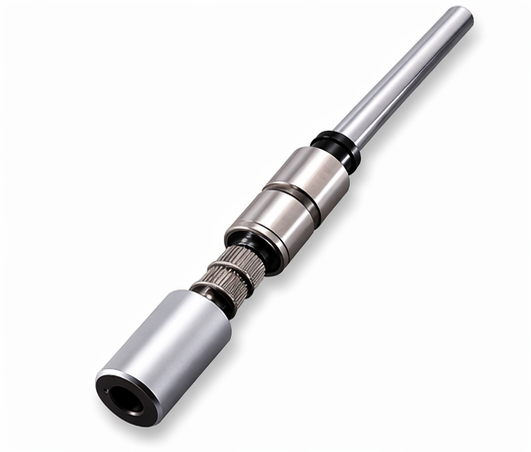

Barmag Friction Unit Spindle

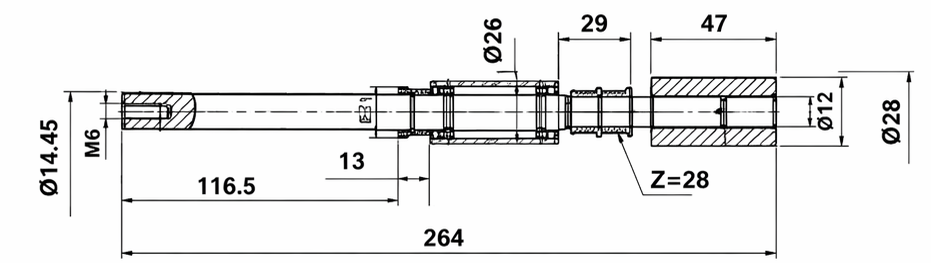

TSP-26326
| Description | Dimensions |
|---|---|
| Left End Diameter | Ø14.45mm |
| Left End Thread | M6 |
| Left End Length | 116.5mm |
| Collar Length | 13mm |
| Middle Section Diameter | Ø26mm |
| First Right Section Length | 29mm |
| Second Right Section Length | 47mm |
| Shaft Diameter (Right End) | Ø12mm |
| Gear (Teeth) | Z=28 |
| Outer Diameter (Right End) | Ø28mm |
| Overall Length | 264mm |

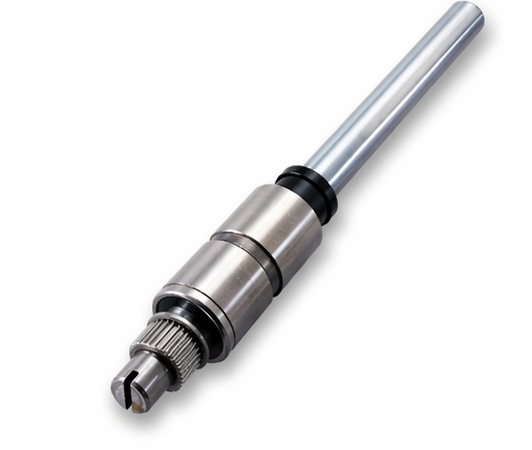

Barmag Friction Unit Spindle

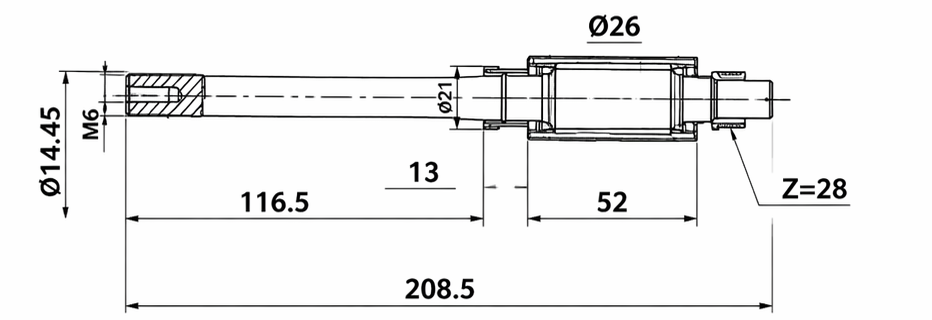

TSP-21026C
| Description | Dimensions |
|---|---|
| Left End Diameter | Ø14.45mm |
| Left End Thread | M6 |
| Left End Length | 116.5mm |
| Collar Length | 13mm |
| Middle Section Diameter | Ø26mm |
| Middle Section Length | 52mm |
| Gear (Teeth) | Z=28 |
| Overall Length | 208.5mm |
Rieter ICBT

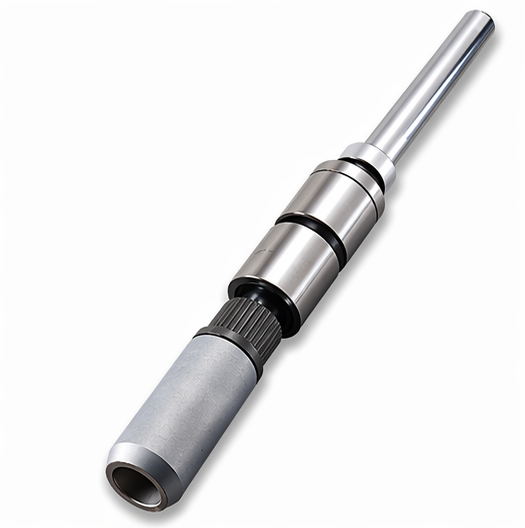

Rieter ICBT Friction Unit Spindle

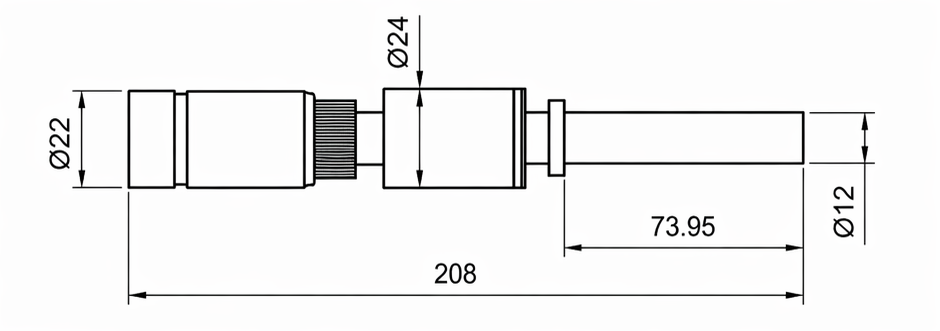

TSP-22
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø22mm |
| Outer Diameter (Middle Section) | Ø24mm |
| Shaft Diameter (Right End) | Ø12mm |
| Overall Length | 208mm |

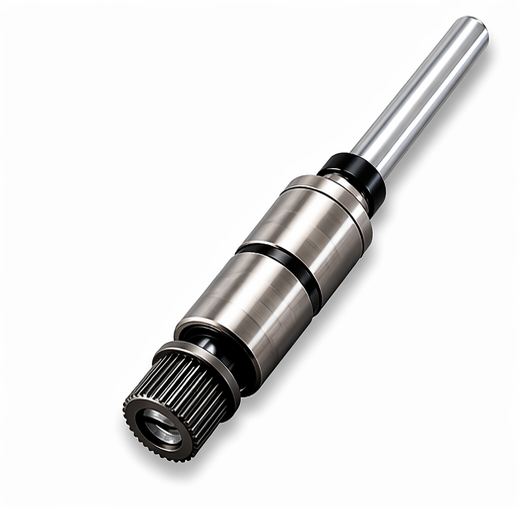

Rieter ICBT Friction Unit Spindle

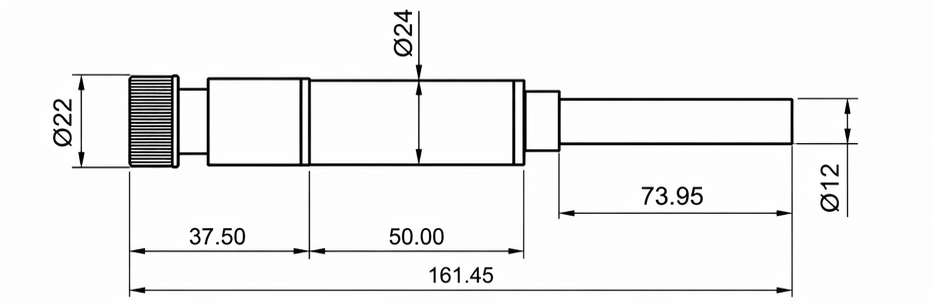

TSP-16
| Description | Dimensions |
|---|---|
| Outer Diameter (Left End) | Ø22mm |
| Outer Diameter (Middle Section) | Ø24mm |
| Shaft Diameter (Right End) | Ø12mm |
| Left End Length | 37.50mm |
| Middle Section Length | 50.00mm |
| Right End Length | 73.95mm |
| Overall Length | 161.45mm |

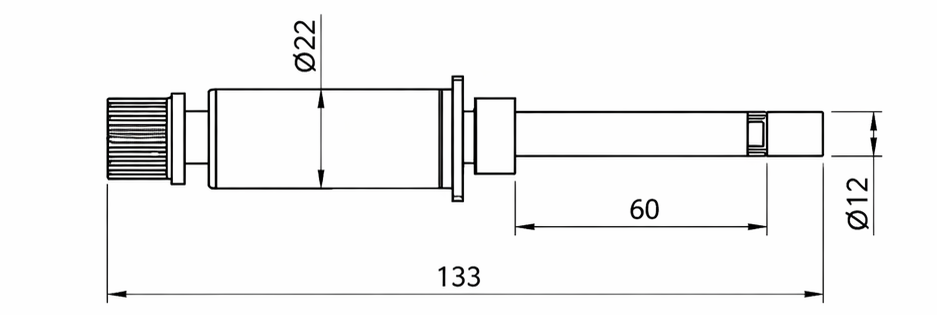

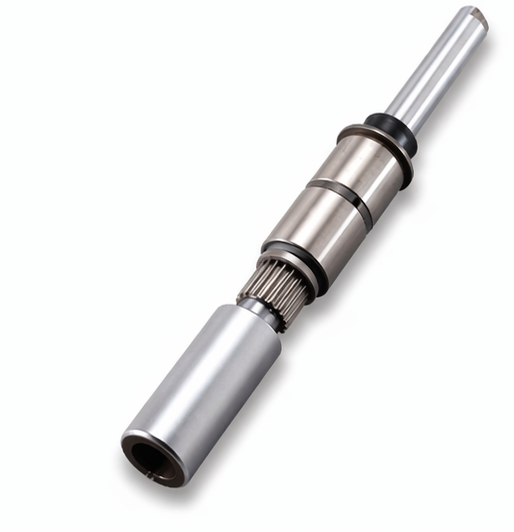

Rieter Scragg
Rieter Scragg Friction Unit Spindle

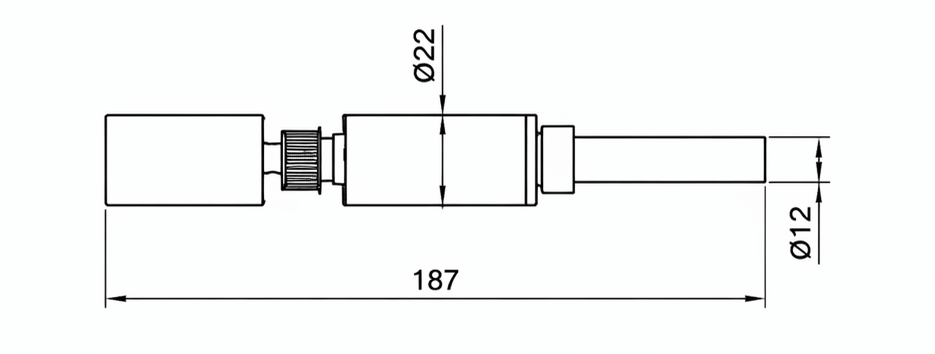

TSP-33
| Description | Dimensions |
|---|---|
| Outer Diameter (Middle Section) | Ø22mm |
| Shaft Diameter (Right End) | Ø12mm |
| Overall Length | 187mm |
Rieter Scragg Friction Unit Spindle

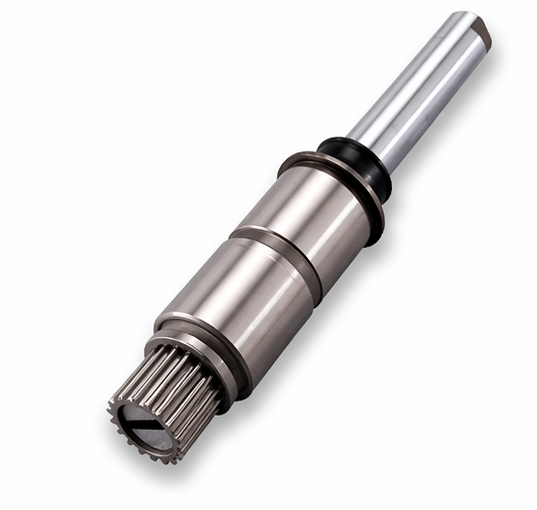

TSP-34
| Description | Dimensions |
|---|---|
| Outer Diameter (Middle Section) | Ø22mm |
| Shaft Diameter (Right End) | Ø12mm |
| Right End Length | 60mm |
| Overall Length | 133mm |
RPR

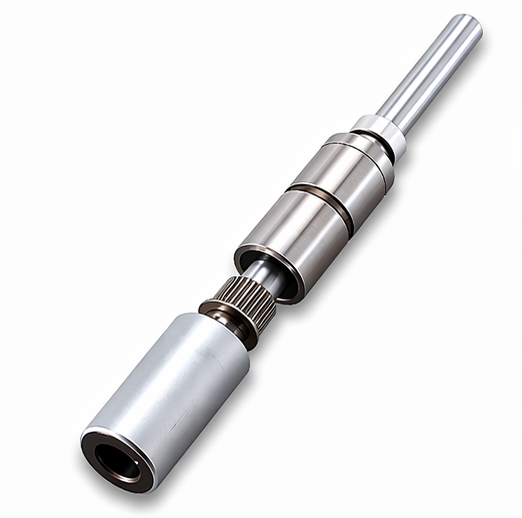

RPR Friction Unit Spindle

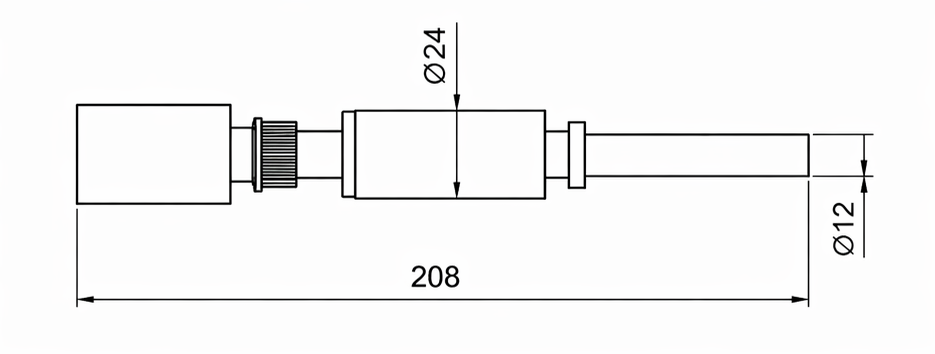

TSP-25
| Description | Dimensions |
|---|---|
| Outer Diameter (Middle Section) | Ø24mm |
| Shaft Diameter (Right End) | Ø12mm |
| Overall Length | 208mm |

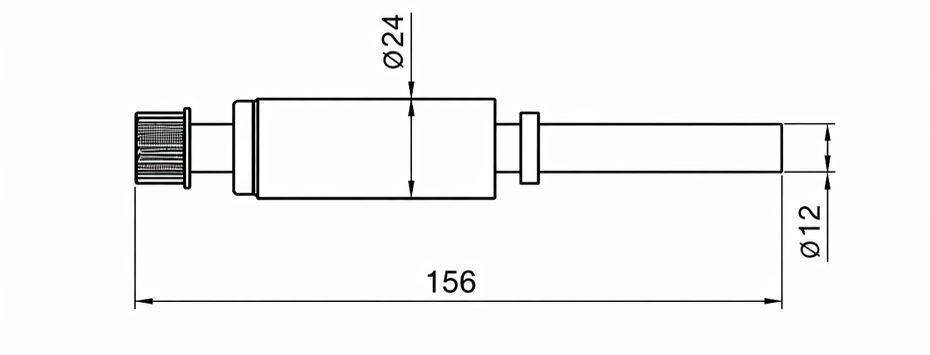

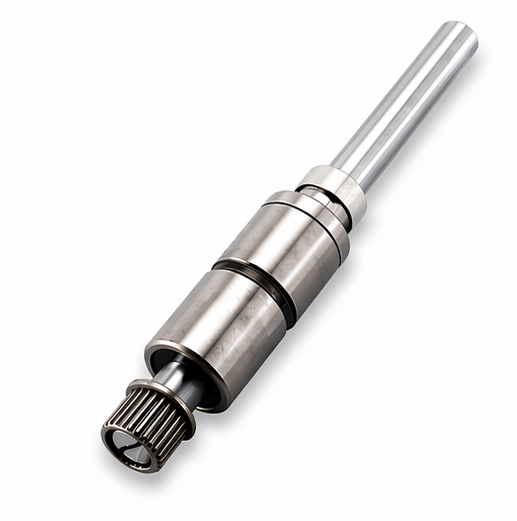

RPR Friction Unit Spindle
TSP-22
| Description | Dimensions |
|---|---|
| Outer Diameter (Middle Section) | Ø24mm |
| Shaft Diameter (Right End) | Ø12mm |
| Overall Length | 156mm |
If you cannot find the spindle or bearing you need, contact us with your machine model, part reference or drawing, and required quantity.
