Ceramic Guides

Ceramic Guide Surface Finishes

Ceramic guides help control yarn tension, friction and yarn quality. Selecting the right combination of material, guide profile and surface finish supports reliable running across different yarn types, speeds and tensions.

We offer a variety of surface finishes designed to optimise yarn handling and performance:

Straight blue filaments running over a matt ceramic surface — Matt Surface for Flat & De Twisted Yarns
**Matt finish:** 0.35 to 0.45 µm
Illustrated yarn diameter: 10 µm.

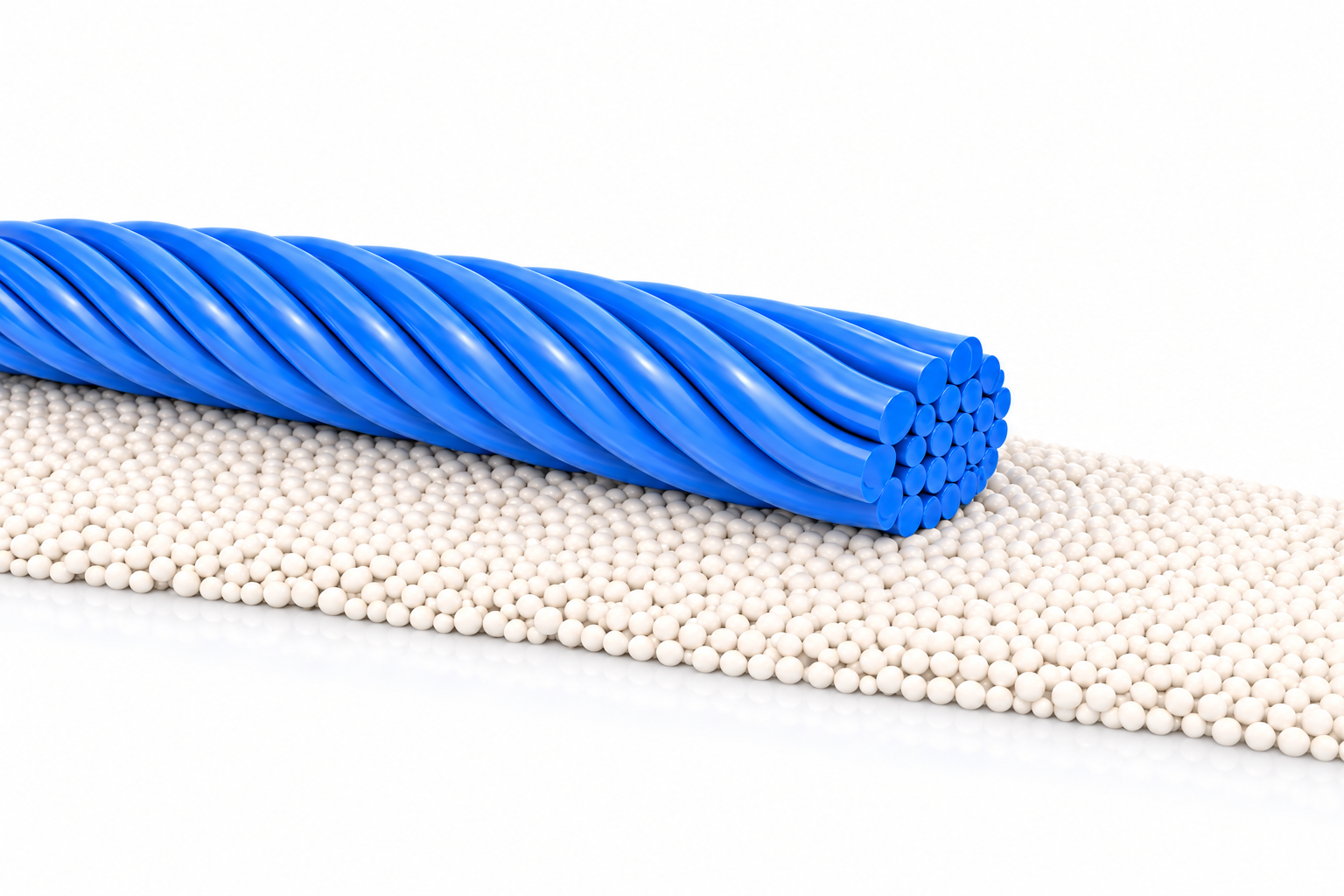

Twisted blue filaments running over a polished ceramic surface — Polished Surface for Twisted Yarns
**Mirror finish:** 0.05 to 0.10 µm
Illustrated yarn diameter: 15 µm. Grain size diameter: 3 µm.

Technical Expertise

Our expertise extends beyond material supply. We understand how yarn interacts with ceramic surfaces under varying operating conditions and recommend a suitable guide type, profile and finish to reduce friction and yarn damage, improve yarn quality and extend component life.

OEM Compatibility

We supply ceramic guides compatible with a wide range of leading OEM equipment, including Aalidhra, Bhagat, Himson, Barmag, Rieter Scragg, Rieter ICBT, SSM, Guidici, RPR and TMT.

Material Comparison

Material selection complements the surface finish and guide profile. Compare Titania, two Alumina purity ranges and Zirconia below, then review their suitability for your application.

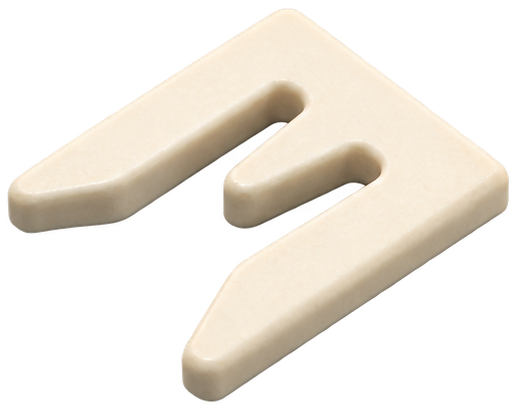

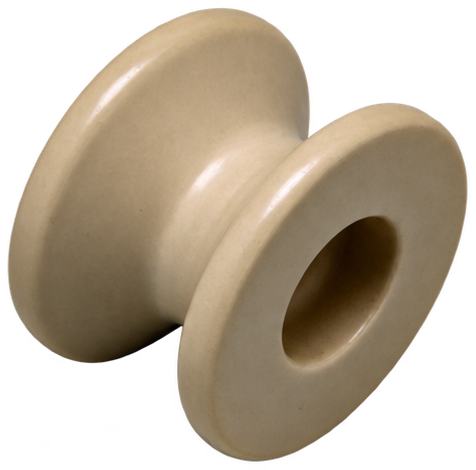

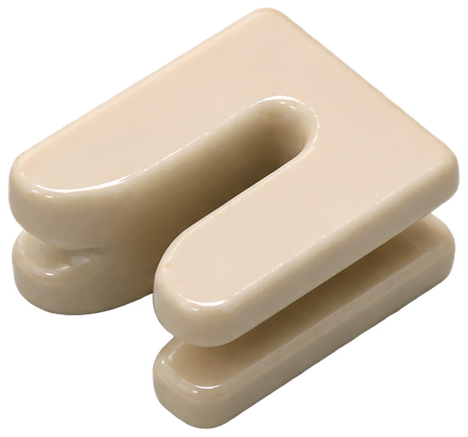

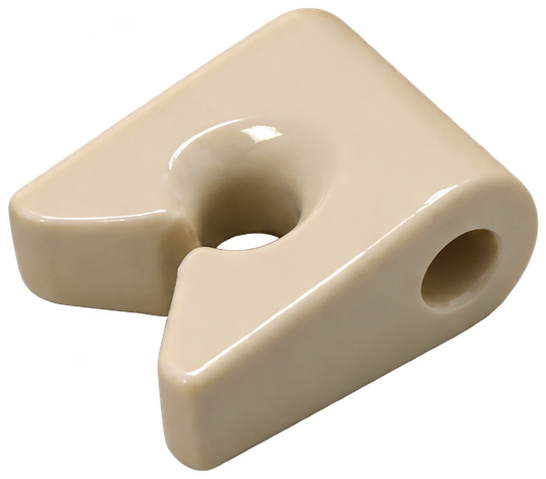

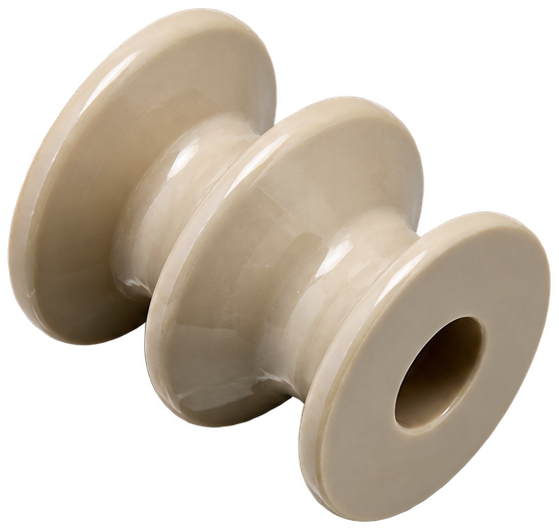

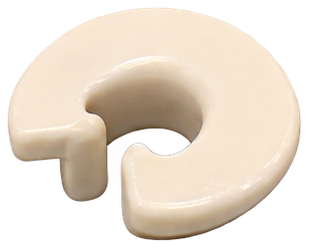

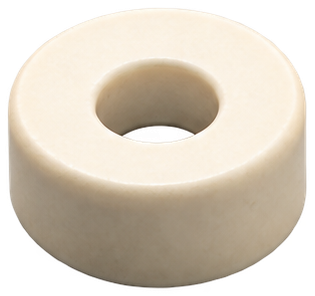

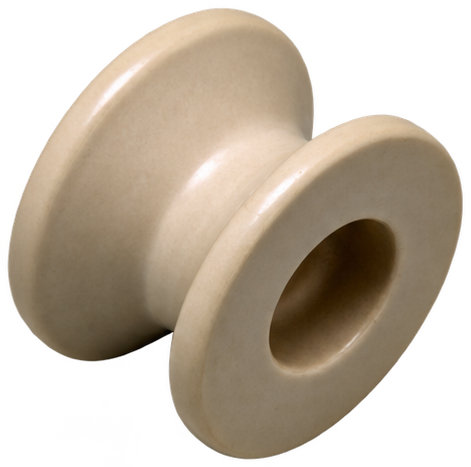

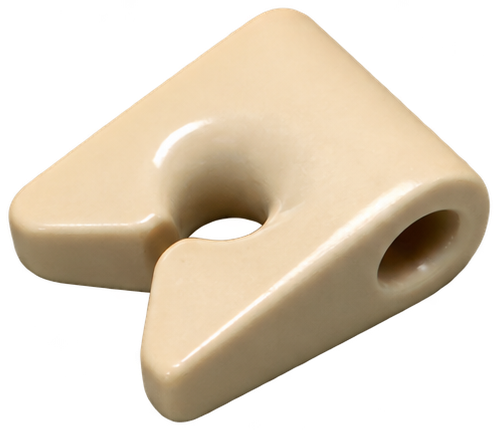

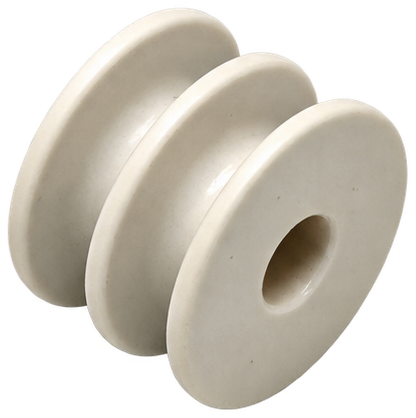

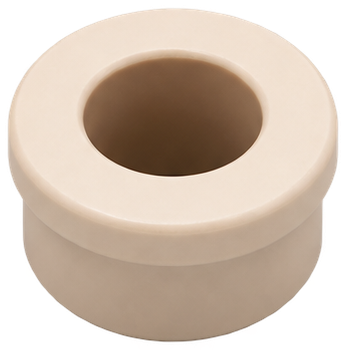

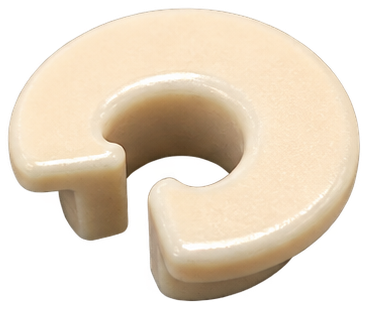

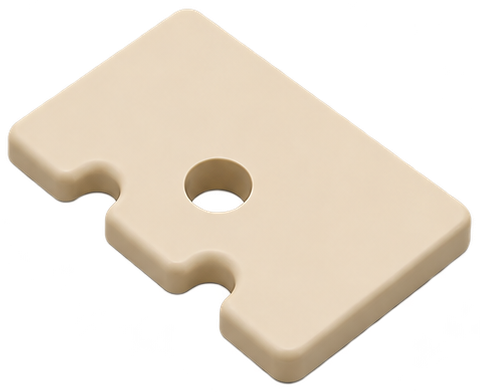

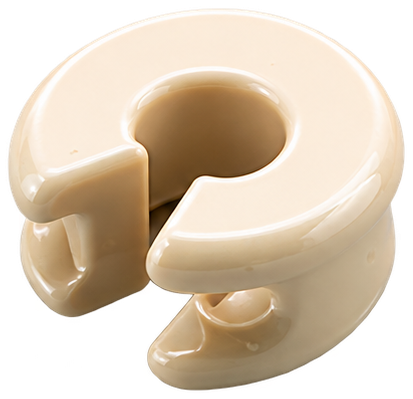

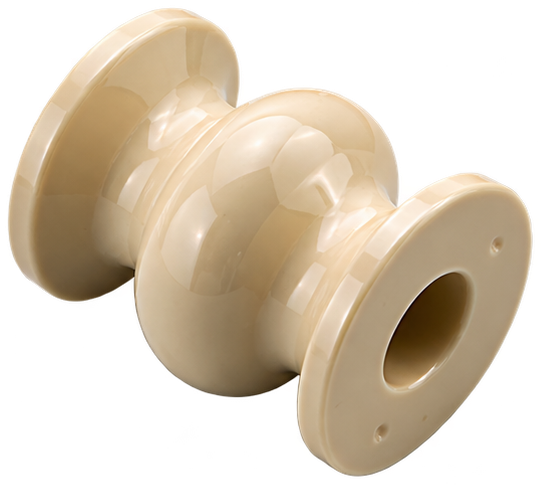

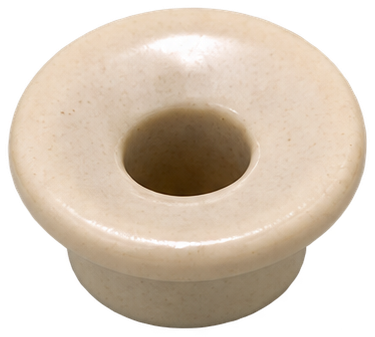

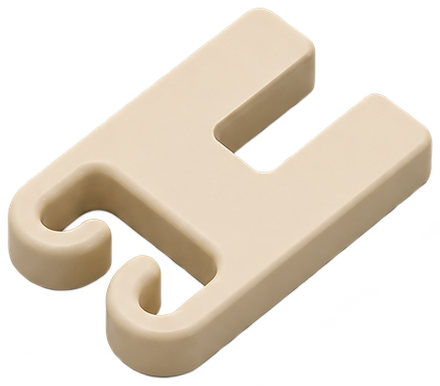

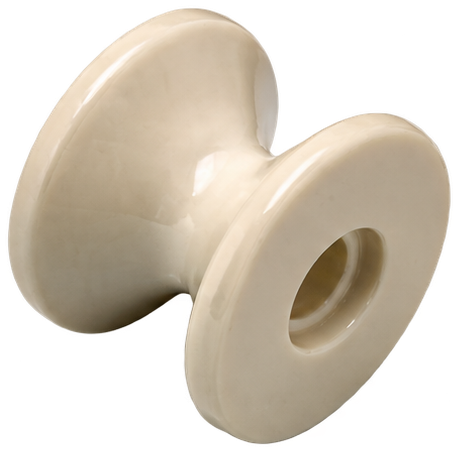

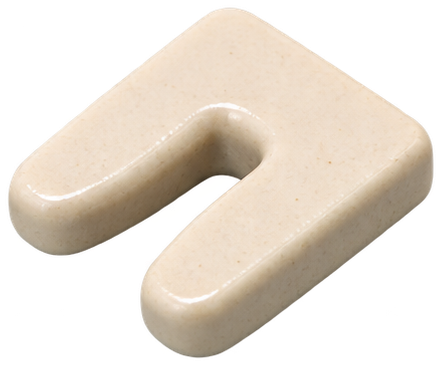

Titania (TiO₂) 96% Purity

Cost: Low
Surface Finish: Good
Wear Resistance: Moderate
Friction Coefficient: Medium

An economical option for simple yarn paths, low speed winding and guiding, particularly with non abrasive fibres, relatively low tension and less sensitive yarns.

Its moderate hardness and higher friction increase contact resistance and can lead to yarn heating and faster surface wear as speed rises. Fine filaments and delicate yarns may be more vulnerable to damage or loss of tensile properties, while wear can require shorter maintenance intervals.

Alumina (Al₂O₃) 95% Purity

Cost: Low to medium
Surface Finish: Very good
Wear Resistance: High
Friction Coefficient: Low

A dependable balance of wear resistance and yarn protection for general textile machinery, medium processing speeds and standard yarn types.

It supports stable yarn running with reduced friction and maintains surface quality during continuous operation. Typical applications include draw texturing and spinning preparation zones, flat yarn paths and low twist areas.

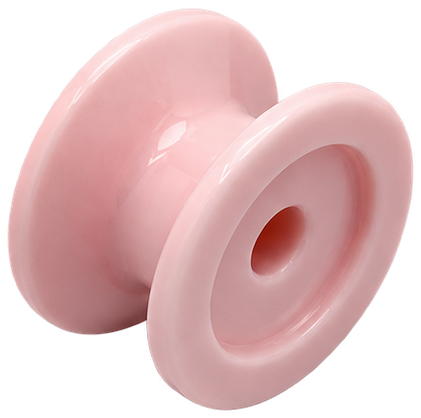

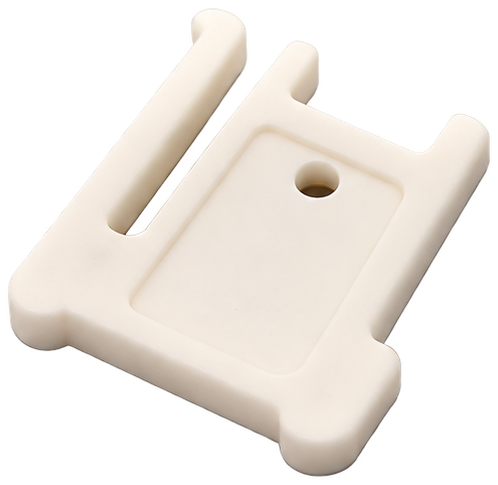

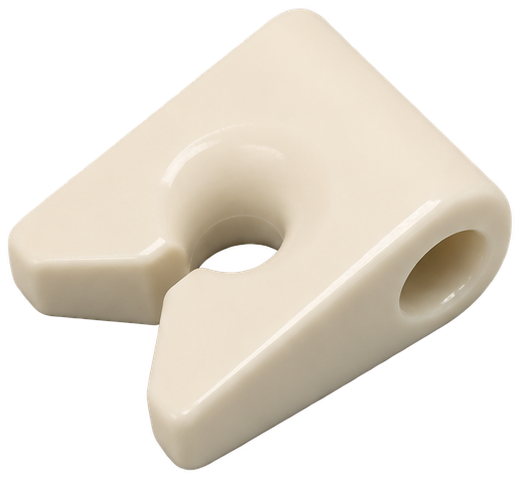

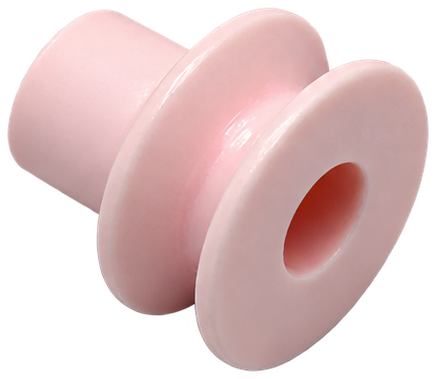

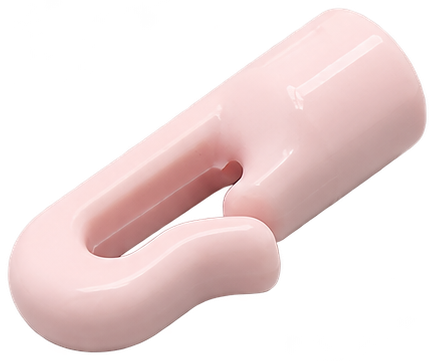

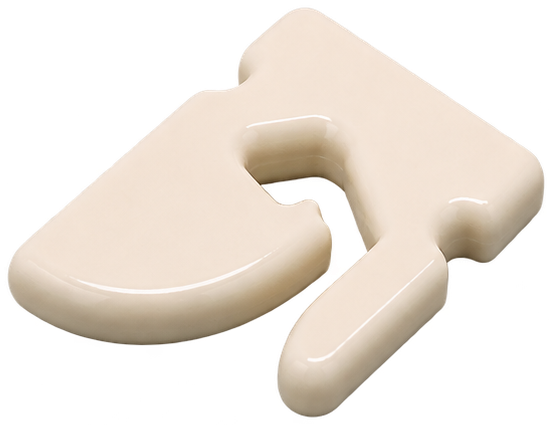

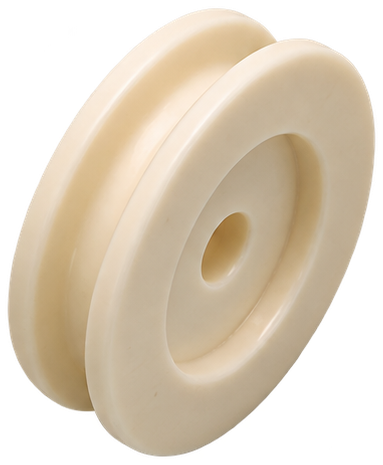

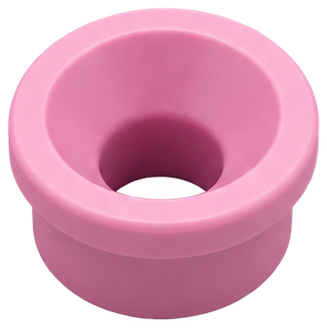

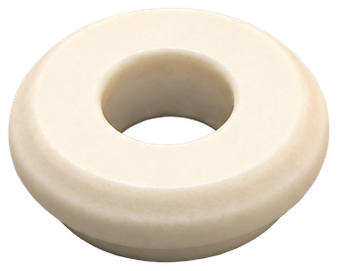

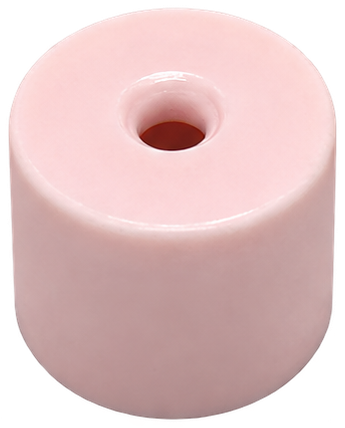

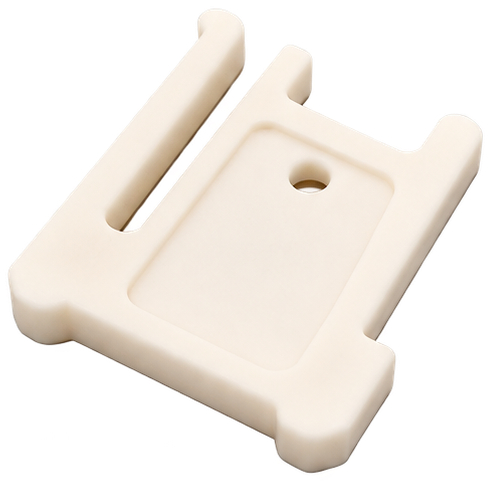

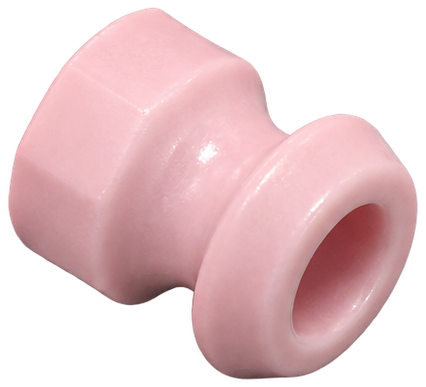

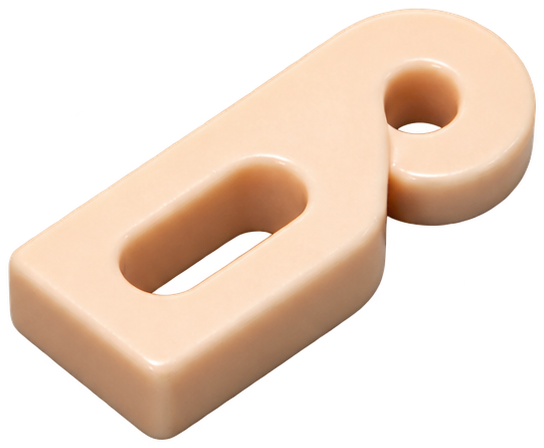

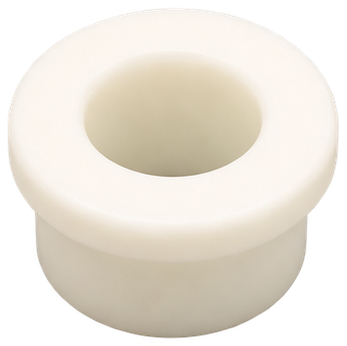

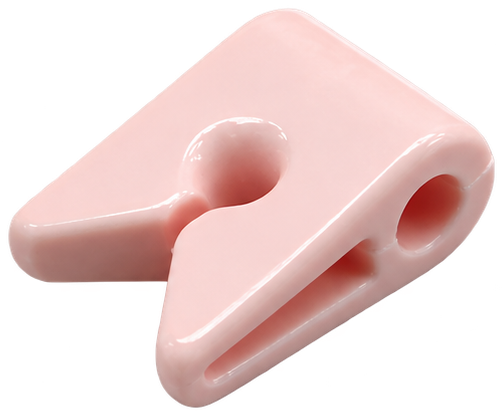

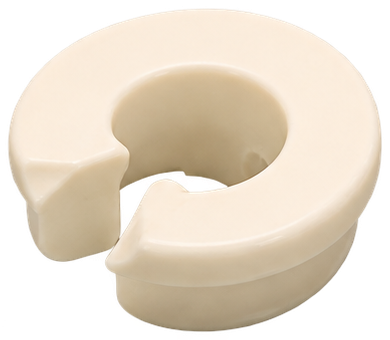

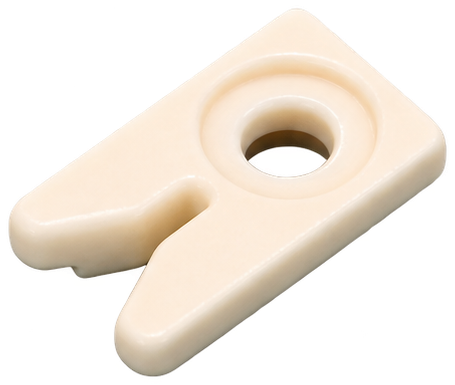

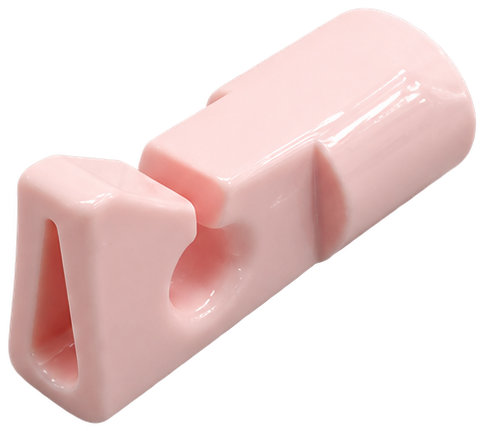

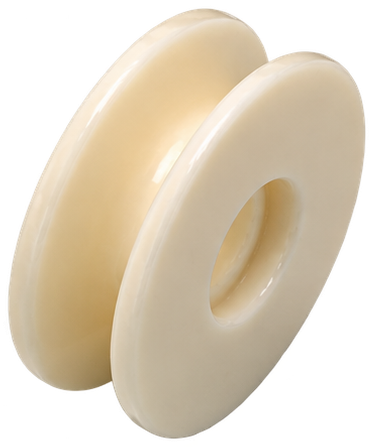

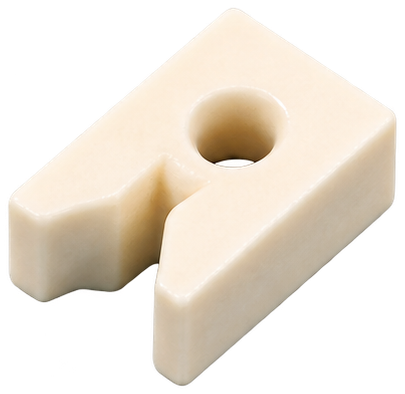

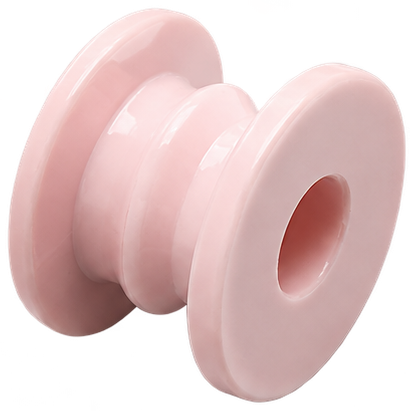

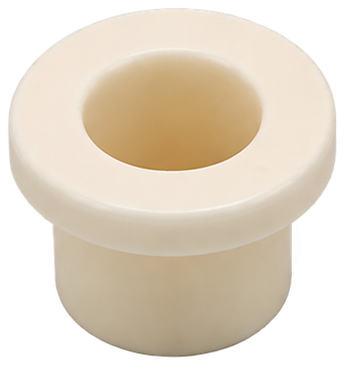

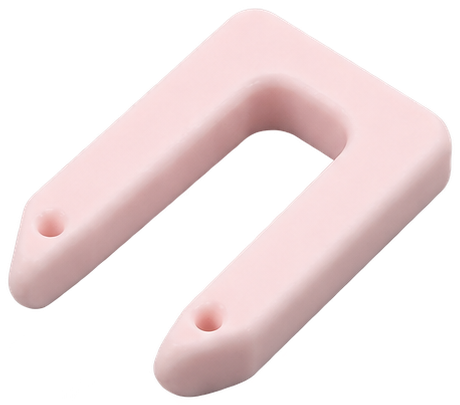

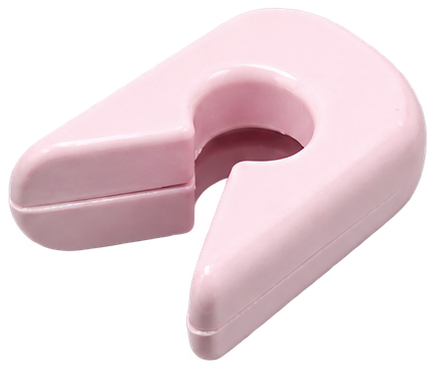

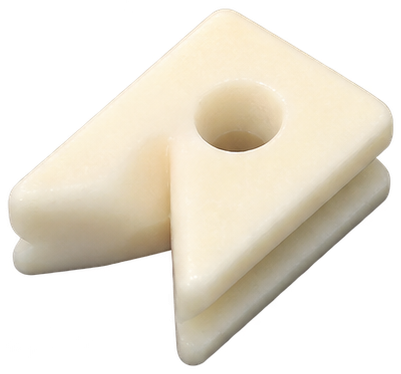

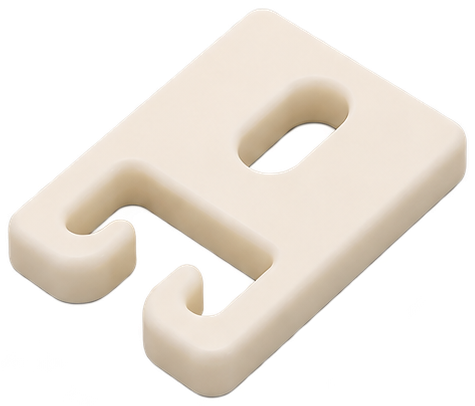

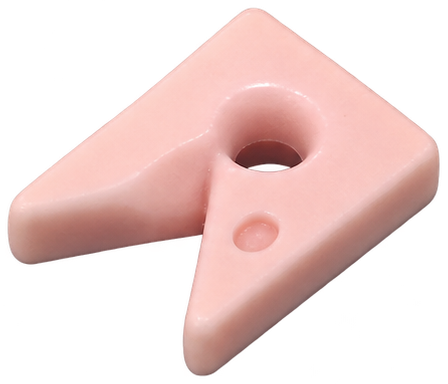

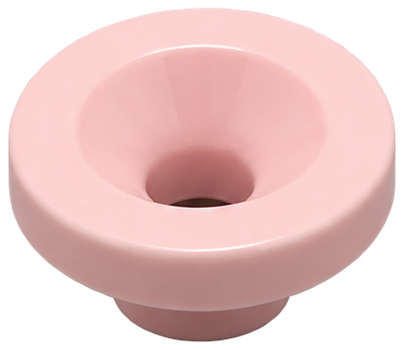

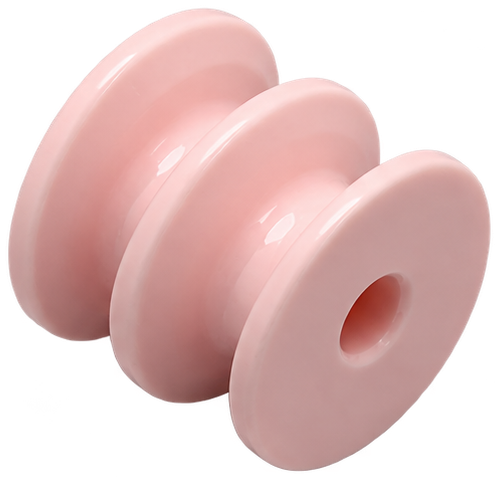

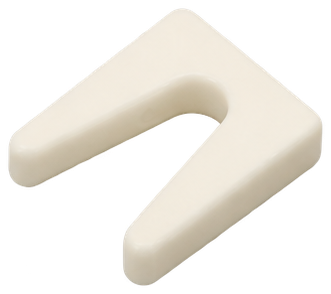

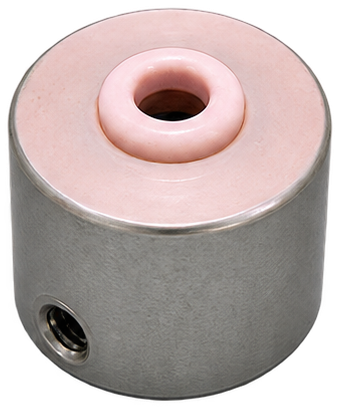

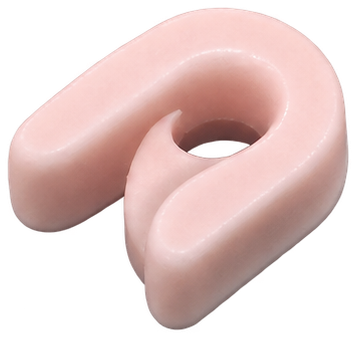

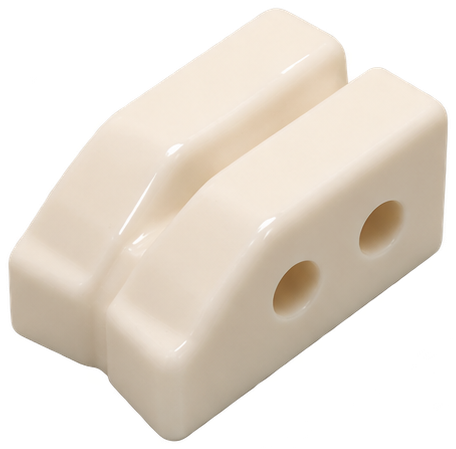

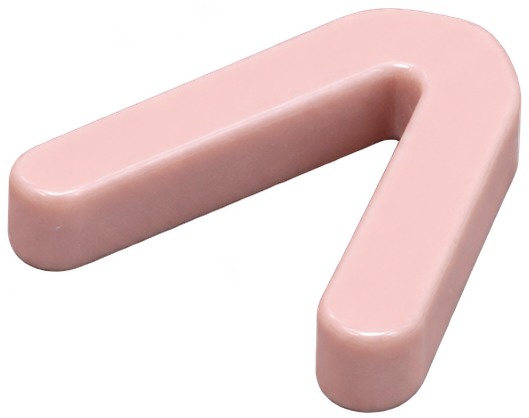

Alumina (Al₂O₃) 99.7% Purity

Cost: Medium
Surface Finish: Excellent, mirror polish
Wear Resistance: Very high
Friction Coefficient: Very low

High purity Alumina combines durability and yarn protection for high speed, quality critical processing, including draw texturing, twisted yarn zones and fine denier filament yarns.

With a suitable mirror polished finish, its smooth surface reduces abrasion and friction, helping maintain consistent tension, limit filament breakage and preserve yarn tensile properties.

Zirconia (ZrO₂)

Cost: High
Surface Finish: Excellent
Wear Resistance: Very high
Friction Coefficient: Very low

A premium option for abrasive fibres and high mechanical loads, including glass fibre, aramid and other technical yarns, as well as high tension winding and guiding.

Its resistance to chipping and cracking helps retain a smooth working surface under demanding conditions. It is typically selected where standard ceramics wear too quickly or fail under stress.

Numerical Material Properties

Property	Titania (TiO₂) 96%	Alumina (Al₂O₃) 95%	Alumina (Al₂O₃) 99.7%	Zirconia (ZrO₂)
Hardness (HV)	800 to 1000	1200 to 1400	1500 to 1800	1200 to 1400
Density (g/cm³)	~ 4.0	3.6 to 3.7	3.8 to 3.9	5.8 to 6.1

Recommended Material by Textile Application

Titania 96%

Low speed, cost sensitive processes

Alumina 95%

General yarn handling / preparation

Alumina 99.7%

High Speed Spinning & Draw Texturing / Speciality Yarns

Zirconia

Abrasive fibres / high tension

Supporting Yarn Quality and Reliable Production

Ceramic guide material, profile and surface finish influence yarn to guide friction, running tension and resistance to wear. Selecting a guide suited to the yarn and operating conditions can help limit abrasion and filament damage while maintaining consistent yarn running.

Wear resistant guides can provide longer service life and reduce replacement frequency. Fewer guide related yarn breaks may also reduce stoppages and support consistent production quality. Actual performance depends on yarn type, spin finish, speed, tension, contact angle and guide condition.
